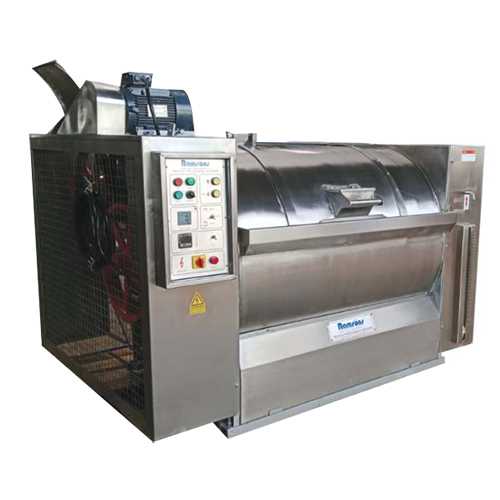

Semi-Automatic Horizontal Washing Machine

Get a Price/Quote

Semi-Automatic Horizontal Washing Machine Specification

Drum Capacity
400 L Liter (L)

Drum Diameter
800 mm Millimeter (mm)

Heating
Electric heating element (adjustable)

Voltage
380V / 50Hz, Three Phase Volt (v)

Capacity
60~100 kg per batch Kg/hr

Material
Stainless Steel 304

Control System
Microcomputer-based automatic control panel

Installation Guideline
Requires proper leveling and secured water/drain connections

Cleaning Method
Horizontal drum agitation with cyclic water flow

Speed Settings
Variable speed (washing/rinsing/spinning)

Water Inlet/Outlet Size
Inlet: 1 inch, Outlet: 2 inch

Safety Features
Automatic door lock, emergency stop, thermal overload protection

Weight
Approx. 900 kg

Motor Power
3.0 kW high-efficiency motor

Noise Level
65 dB

Display
Digital display for operation status

Door Type
Front loading, heavy-duty hinged door

Semi-Automatic Horizontal Washing Machine Trade Information

Delivery Time
5-10 Days

About Semi-Automatic Horizontal Washing Machine

Distinguished by its top-tier engineering, this Front Loading Horizontal Washing Machine delivers special performance for industrial laundry needs. Crafted with famed heavy-duty stainless steel (SS 304), it features a potent 3.0 kW motor and variable speed control for washing, rinsing, and spinning. The esteemed, microcomputer-based control panel and digital display ensure operational clarity and efficiency. With a venerable drum capacity of 400 L, adjustable electric heating, and robust safety features, it guarantees fresh, reliable results for each batch, available in multiple capacities up to 200 kg per operation, serving as a reputable exporter, importer, manufacturer, and supplier in India.

Applications, Usage, and Features of Horizontal Washing Machine

Ideal for large-scale laundries, hospitals, hotels, and uniform service providers, our Horizontal Washing Machine is designed for both general and specific professional use. It excels in bulk textile and apparel cleaning, maintaining garment integrity through its cyclic horizontal drum agitation and advanced variable speed options. Features include a heavy-duty front-loading hinged door, automatic safety lock, thermal protection, and easy-to-read digital status display, making it a reliable partner in demanding commercial cleaning operations.

Horizontal Washing Machine: Packaging, Payment, and Supply Terms

Each Horizontal Washing Machine is carefully packed for export markets, ensuring secure transit and flawless arrival. Payment terms are tailored per proposal amount, including flexible options such as advance payment or Letter of Credit, meeting the preferences of institutional buyers. Our machines are handed over promptly after completion, with supply ability scaled to meet bulk or recurring demands, supporting both domestic and global business requirements.

Technical Specifications

Model	Capacity (kg)	Basket			Door opening diameter (mm)	Motor (hp)	Steam inlet (inch)	Water inlet (inch)	Drain outlet (inch)	Heater (optional) (kw)	Dimensions (WxDxH)	Net Weight (kgs)
Model	Capacity (kg)	Volume (ltr)	Diameter (mm)	Depth (mm)	Door opening diameter (mm)	Motor (hp)	Steam inlet (inch)	Water inlet (inch)	Drain outlet (inch)	Heater (optional) (kw)	Dimensions (WxDxH)	Net Weight (kgs)
RHW 15	15	230	700	600	310 x 310	1	0.5	1.5	1.5	6	1120x1200x1050	300
RHW 30	30	440	790	900	370 x 370	2	1	2	3	9	1690x1310x1330	600
RHW 50	50	712	900	1120	440 x 470	3	1	2	3	18	1910x1380x1530	750
RHW 75	75	1065	1100	1200	575 x 555	5	1	3	5	24	2100x1600x1680	1000
RHW 100	100	1448	1240	1200	585 x 570	7.5	1	3	5	27	2200x1980x1840	1200
RHW 150	150	2190	1100	2300	580 510-2	10	1 x 2nos	3 x 2nos	5	66	3460x1800x1560	1500
RHW 200	200	2777	1240	2300	610 x 575-2	15	1 x 2nos	3 x 2nos	5	72	3460x1880x1750	1700

FAQ's of Horizontal Washing Machine:

Q: How is the Horizontal Washing Machine installed?

A: Installation requires the machine to be properly leveled and securely connected to water and drain sources. Professional installation ensures optimal functioning and adherence to safety standards.

Q: What safety features are present in this washing machine?

A: The machine offers an automatic locking door, emergency stop button, and thermal overload protection to safeguard both operators and equipment.

Q: When should I use different speed settings?

A: Variable speed settings are selected based on fabric type and cleaning requirements. Use lower speeds for delicate items and higher speeds for heavier, soiled textiles.

Q: Where can this machine be applied for best results?

A: This machine excels in high-volume commercial environments such as hospitals, hotels, and industrial laundries, delivering reliable and uniform cleaning performance.

Q: What is the process for cleaning large textile batches?

A: Load textiles into the stainless-steel drum, select the preferred wash cycle and speed, and initiate the programmed operation via the digital display. The machine cycles water and heat as required for efficient cleaning.

Q: What are the benefits of the microcomputer-based control system?

A: It ensures user-friendly operation, precise adjustments, and automation, optimizing wash results and reducing manual intervention for staff efficiency.
